Position： HOME > PRODUCTS > Vehicle
  • 3.5T Electric forklift
  • 3.5T Electric forklift

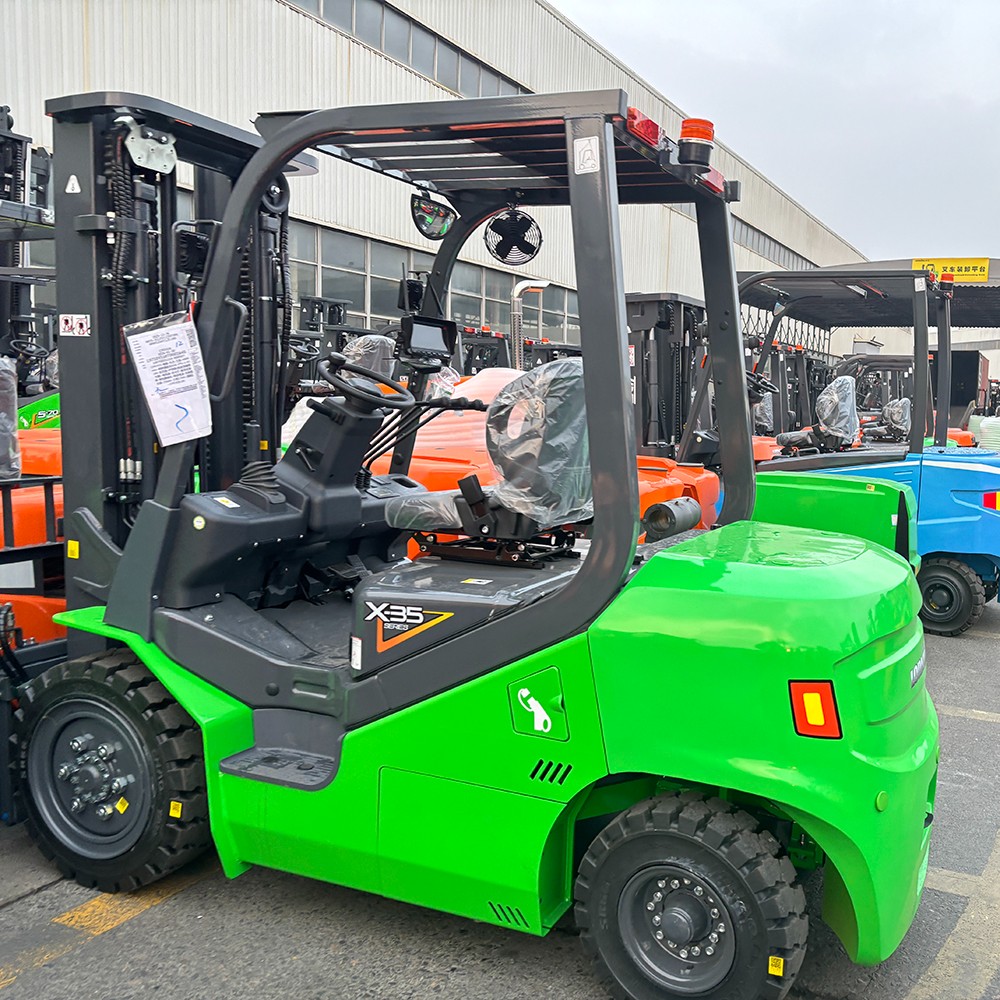

name: 3.5T Electric forklift
date: 2026-03-27 17:40:20
view: 154
about:

　 WHO WE ARE  GTCO  Machinery company is located in Xicheng New District, Linyi City--- a commercial and logistics city.    After more than 20 years' continuous innovation and development , Machinery has become an outstandi...




DETAIL



ModelUnitCPD35-N2FL
Rated loadKg3500
Load center distancemm500
Maximum lifting heightmm3000
Free lift heightmm145
Gantry tilt angle (front/rear)degJUNE
Minimum turning radiusmm2200
Right-angle stacking aisle width (1000x1200 horizontal)mm4045
Right-angle stacking aisle width (800x1200 longitudinal)mm4175
Travel speed (unloaded/fully loaded)Km/h19/18
Lifting speed (unloaded/fully loaded)mm/s440/310
Maximum gradeability (fully loaded)%20
Weight (including battery)Kg4720
Drive motorKw16.6
Hoist motorKw25.5
Controller
Fanji
Battery capacityV/Ah80/410

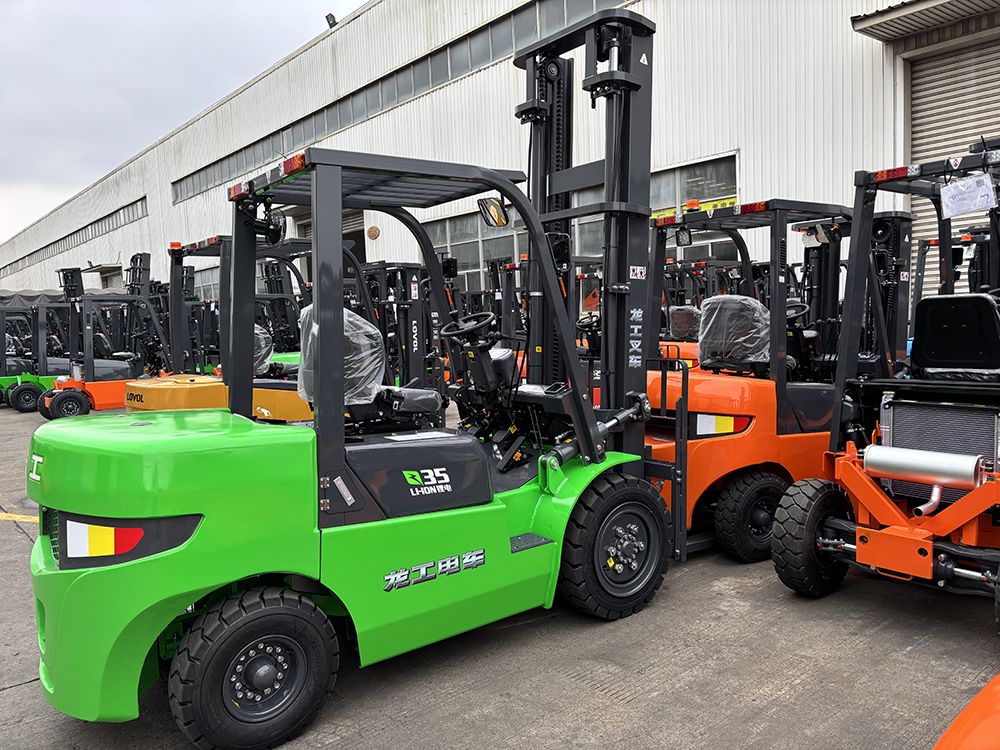

3.5T Electric forklift(图1)

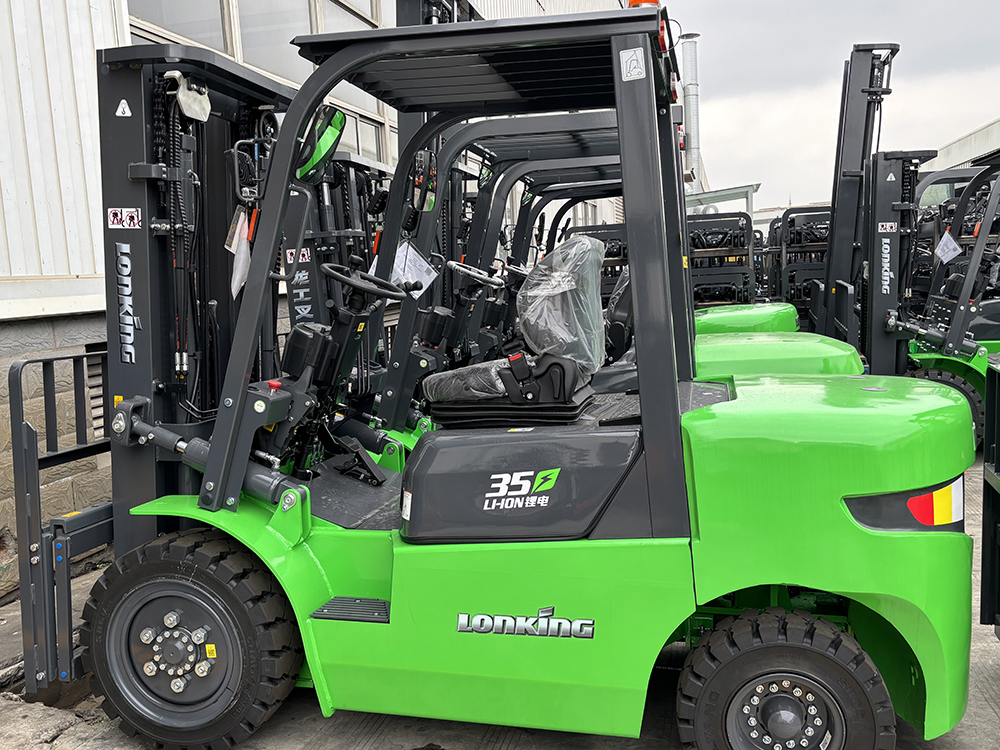

3.5T Electric forklift(图2)

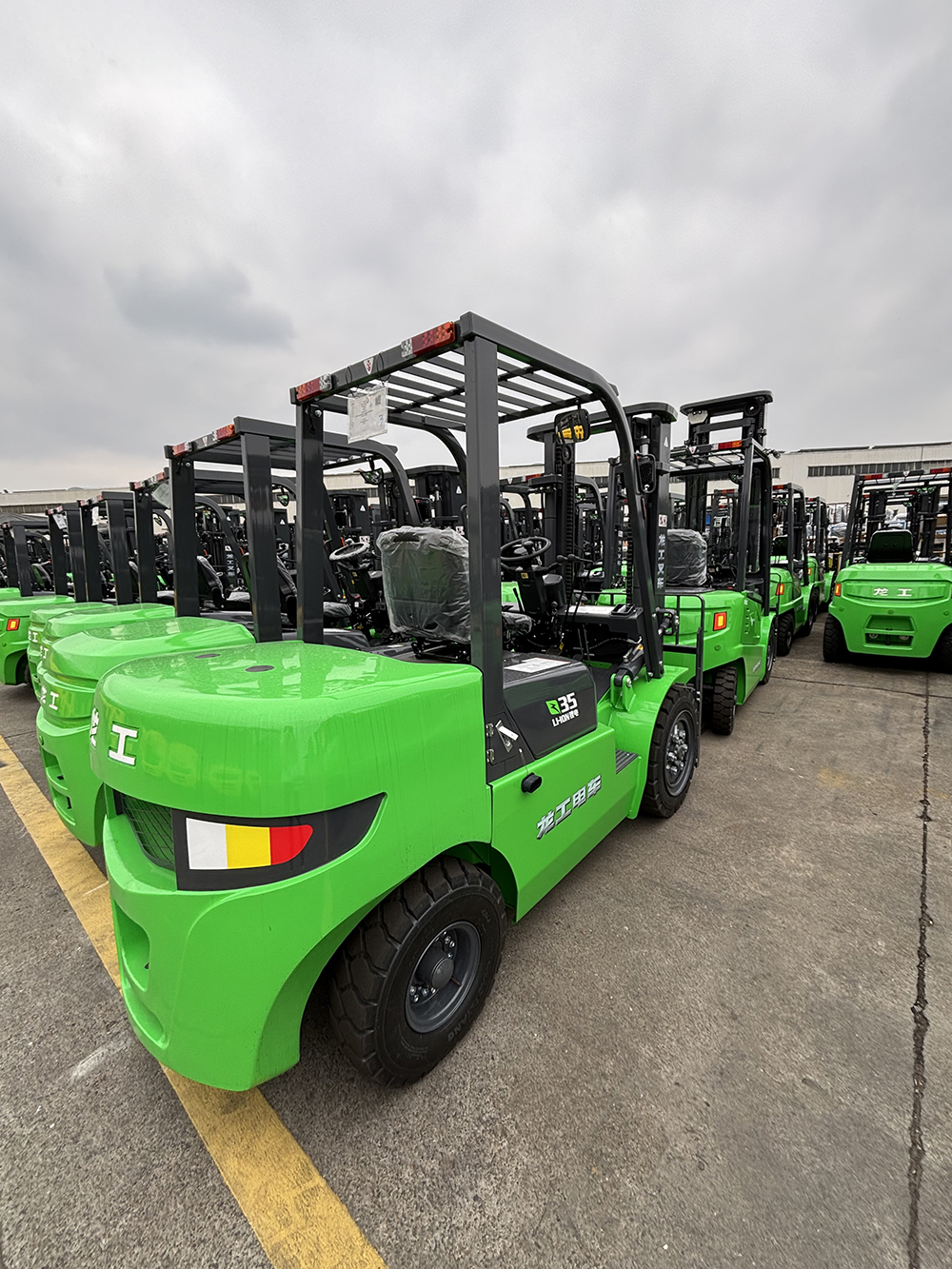

3.5T Electric forklift(图3)
